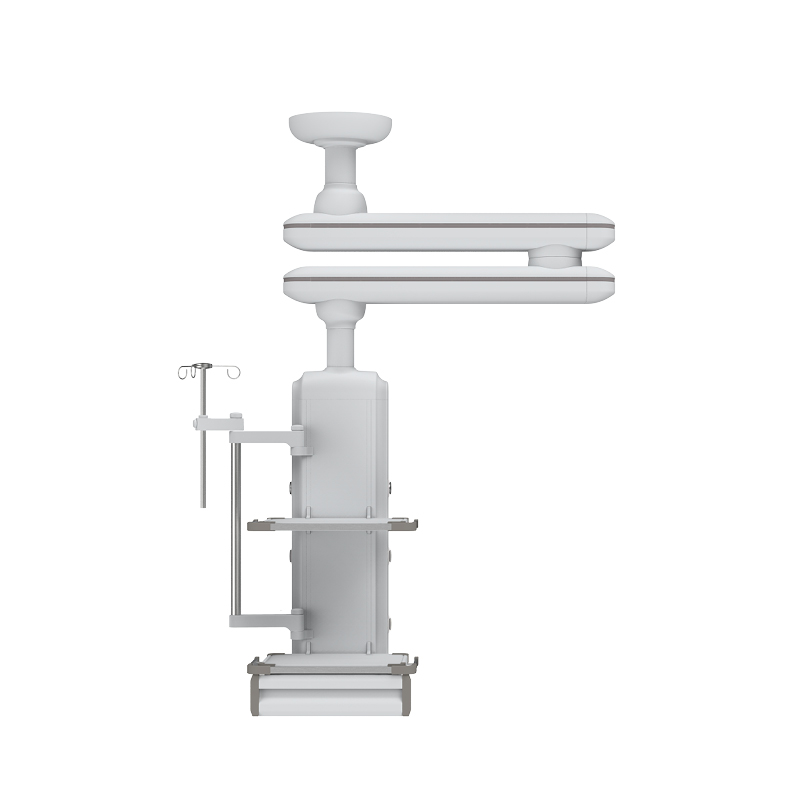

SK-PT003 Medical Bridge Ceiling Pendant


  • Product Type: SK-PT003
  • Introduction:

    The double arms medical bridge ceiling pendant is more flexible in moving and positioning, compared with the single one, longer treatiment coverage radius, meeting the daily load-bearing requirements and using strong material, made of imported antibacterial plastic powder, ensuring the cleanliness of the operating environment. Its rich accessories matching various systems, greatly extending the clinical practicability.







    Highlights

    Features

    Quality Control

    Warranty

    Download

    SK-PT003 (1)

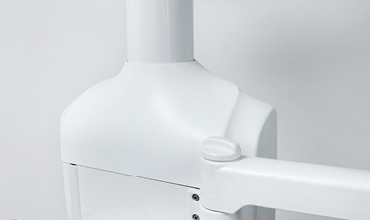

    Appearance design
    The design of ceiling type function column, saves ground space; the whole function column is fully sealed, no sharp angle to prevent the impact.

    Painting
    Imported plastic powder, electrostatic painting process, painting thickness 0.12mm, brightness 60°, paint can resist 50kg impact.

    SK-PT003 (2)
    SK-PT003 (3)

    Welding
    Panasonic Robot ensure 360° full smooth welding.

    Material
    The tensile strength of aluminum alloy frame is more than 295MPa, some connecting parts are made of cast iron ≥200MPa, and the net load is more than 300kg; one-off extrusion molding, and the surface undergoes the primary oxidation treatment.

    SK-PT003 (4)
    SK-PT003 (5)

    Braking System
    The pneumatic brake system, using compressed air to brake hanging arms and medical pendants, one press to release the brake.

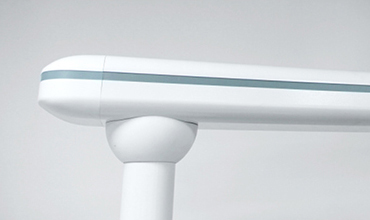

    Suspension System
    The rotation angle of medical pendant and hanging arm is 340°, built-in rotation limit device to prevent drift.

    SK-PT003 (6)
    SK-PT003 (7)

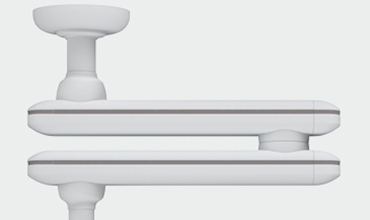

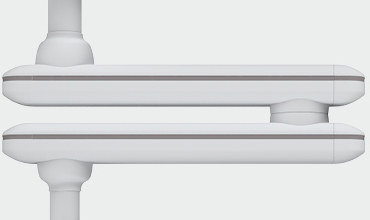

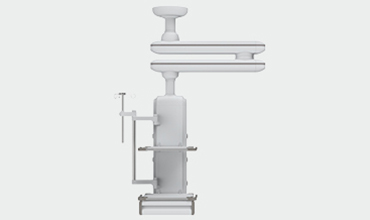

    Rotating Arm
    The double rotating arms cover 1400mm treatiment radius, can be used flexibly during treatment, meeting the surgical needs of all departments.

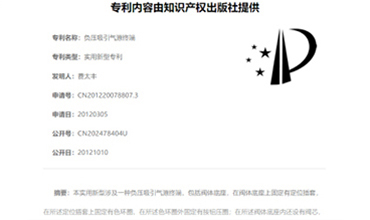

    Utility Model Patent
    Negative pressure terminal obtained the Utility Model Patent CN202478404U.



    SK-PT003 (8)
    SK-PT003 (9)

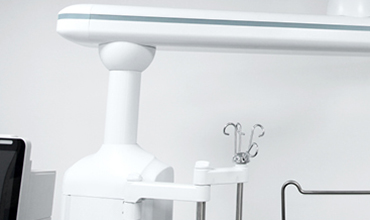

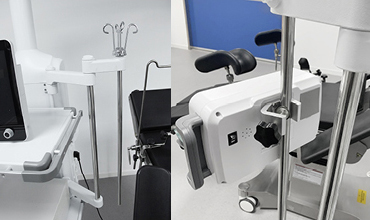

    IV Pole with Four Hooks
    The length of IV pole is 600mm, can be retractable, with four hooks, single hook can bear 4 kg.

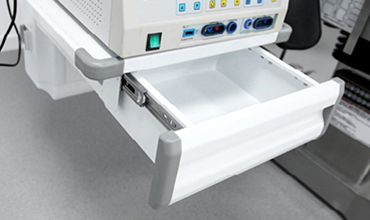

    Drawer
    Silent self-priming track, no damage after 10,000 times push-pull tests, and the handle position is integrally formed by pressing with mould.



    SK-PT003 (10)
    SK-PT003 (11)

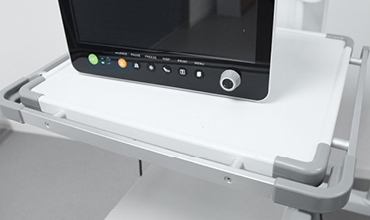

    Instrument Platform
    The size of the table top is 450*500mm, and the height of table surface can be adjusted. The table top is made of aluminum alloy panel with iron square tube inside, can bear≥50KG;with external aluminum alloy hanging frame.

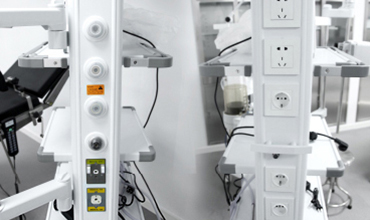

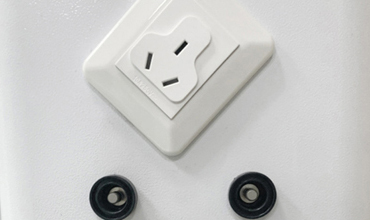

    Medical Gas
    It is equipped with medical gas on both sides of the cabinet and column. The following configurations can be customized,
    1. The number of medical gas  2. Interface standard and position
    Gas port adopts secondary seal, three states (on, off, pull), support maintenance operations while it is working.

    SK-PT003 (12)
    SK-PT003 (13)

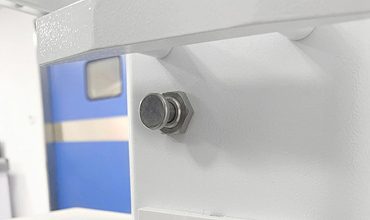

    Equipotential Socket
    Reduce the potential difference between indirect contact voltage and different metal parts.


  • Previous:
  • Next:

  • Product introduction:

    The double arms medical bridge ceiling pendant is more flexible in moving and positioning, compared with the single one, longer treatiment coverage radius, meeting the daily load-bearing requirements and using strong material, made of imported antibacterial plastic powder, ensuring the cleanliness of the operating environment. Its rich accessories matching various systems, greatly extending the clinical practicability.

    Product Application:

    Suitable for OR room

    Optional accessories:

    1. Net basket – Stainless steel net basket
    2. We manufacture and provide different standard of medical gas outlet: British Standard, American standard, German standard, French standard, Japanese Standard, etc.
    3. Different standard of medical gas outlets & adapters: British standard, French standard, German standard, Diss, Ohmeda, Chemetron, and etc.
    4. Inhalers – All kinds of oxygen inhalers (disposable, simple, external hanging, etc.)
    5. Negative pressure regulating valve
    6. Waste liquid collection device (external hanging type)

    FireShot-Capture-001---Hospital-bed_Jiangsu-Saikang-Medical-Equipment-Co.,Ltd.---saikangmedical_05

    We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.

    FireShot-Capture-001---Hospital-bed_Jiangsu-Saikang-Medical-Equipment-Co.,Ltd.---saikangmedical_08

    feature-thumb-3



    WARRANTY

    * We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.

    * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.

    * Beyond the maintenance period, we will charge the accessories, but the technical service is still free.



    feature-thumb-2


    FAQ

    What quality requirements does your company meet?

    * We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.

    * We also meet the 93/42/EEC and IEC60601 safety standards.

    * In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.

    What warranty do your products have?

    * We provide a standard 1 year warranty, optional to be increased.

    * 1% free parts of the total quantity will be provided together with goods.

    * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.

    * Beyond the maintenance period, we will charge the accessories, but the technical service is still free.

    What is your delivery time?

    * Our standard delivery time is 28 days.

    What payment options do you offer?

    * We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.

    Do you offer OEM service?

    * Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.

    Do you have different motor options?

    * Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.

    Is the color on headboard/footboard and ABS side rail optional?

    * Yes, we can provide the color according to customers’ requirements, based on wholesale purchases.

    Can I see your products personally?

    * You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).

    * In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
