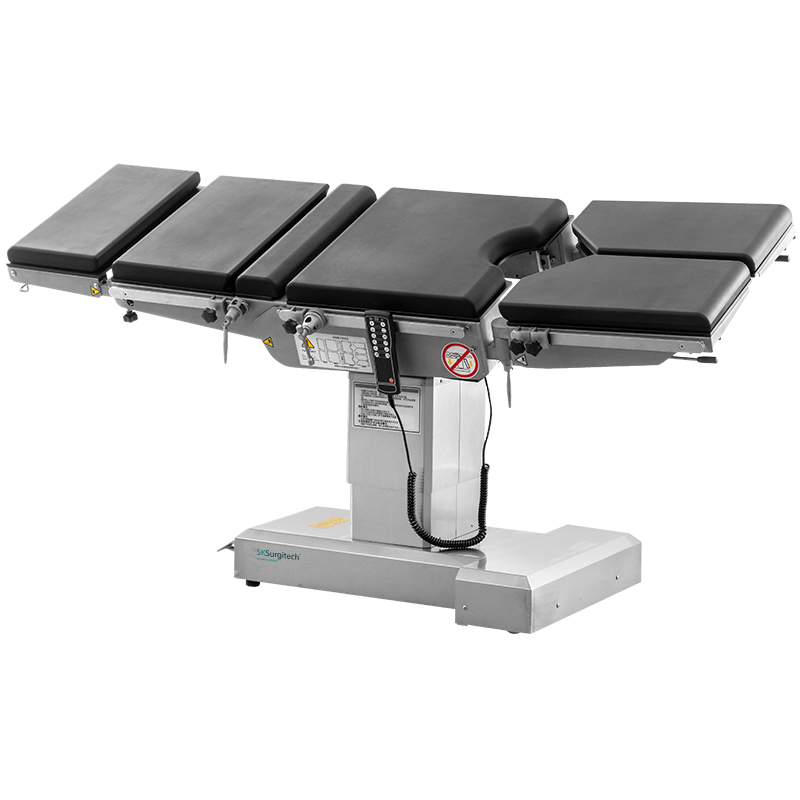

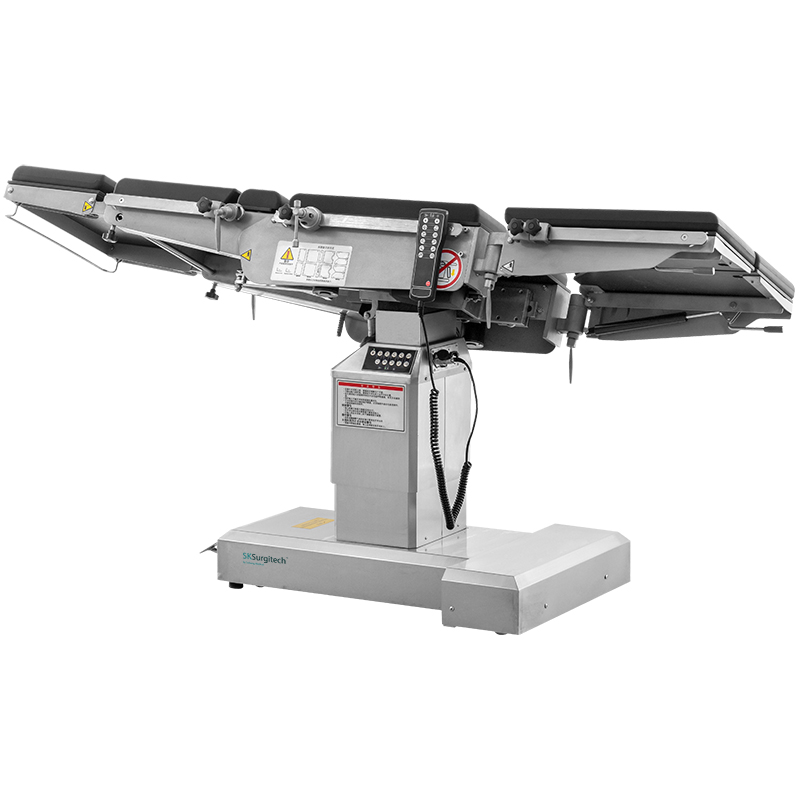

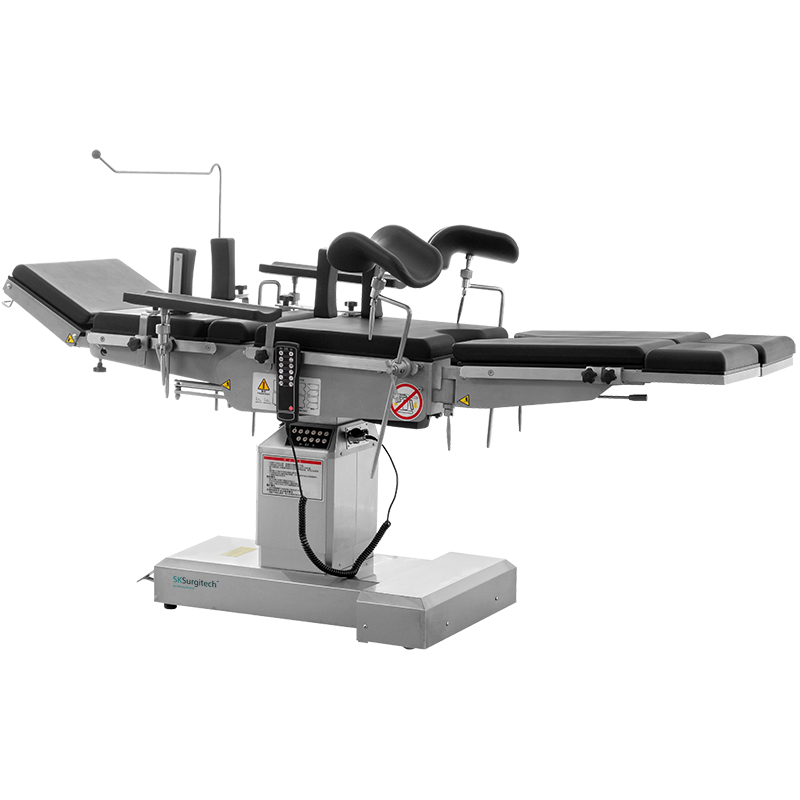

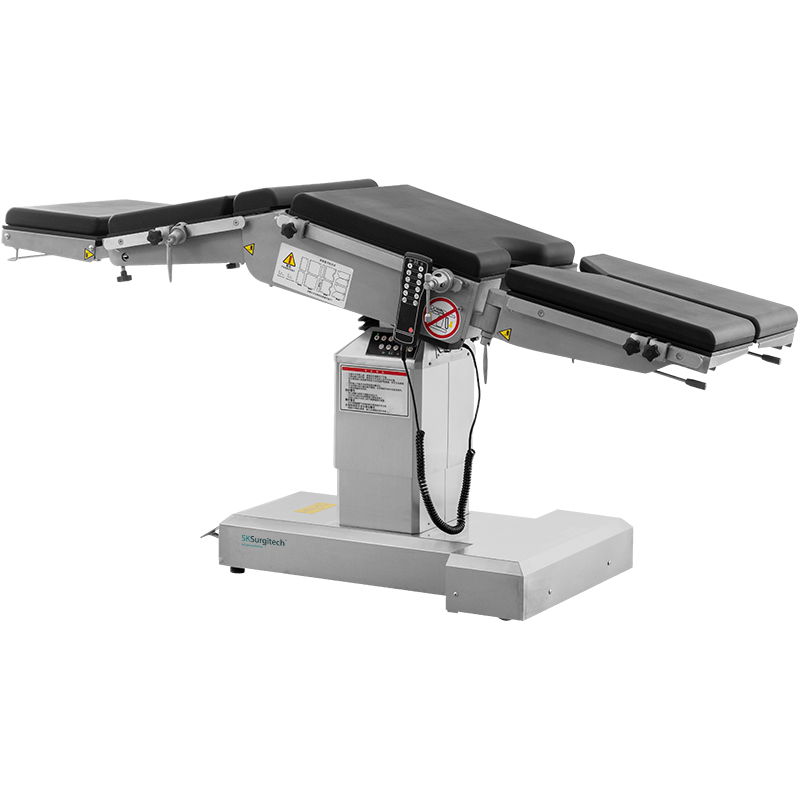

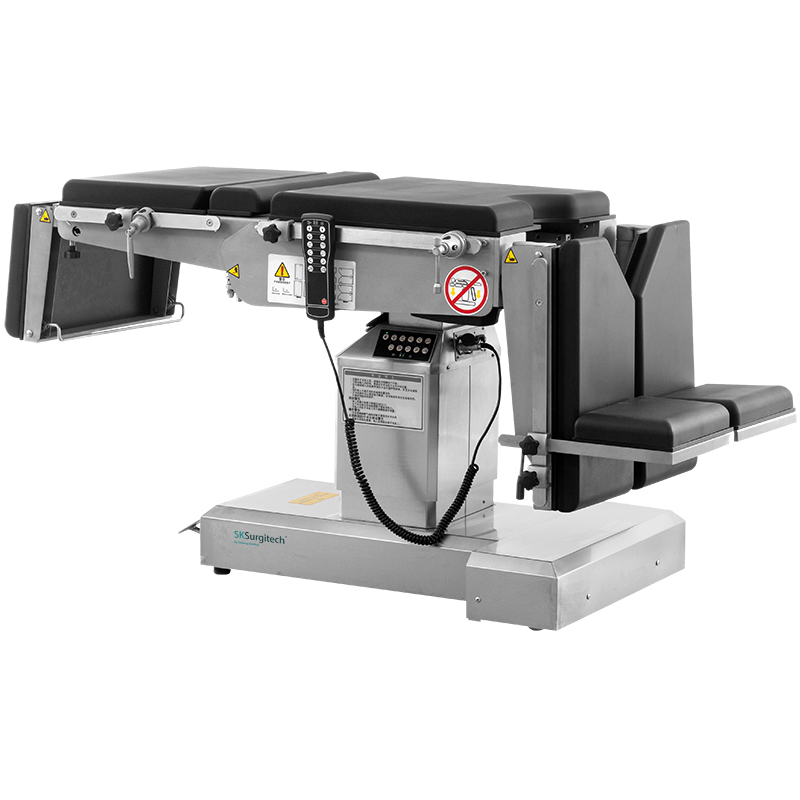

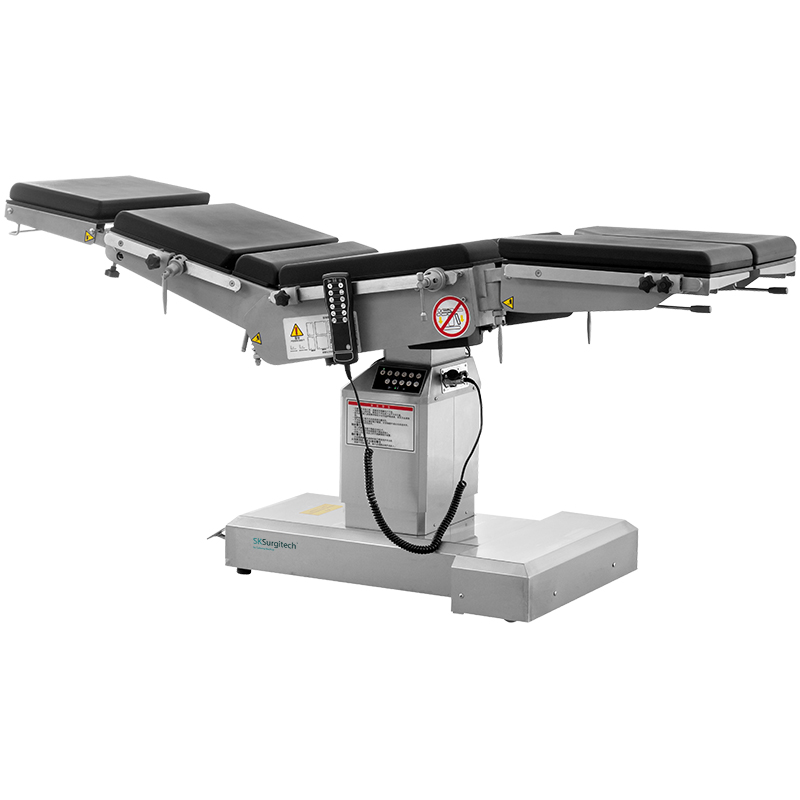

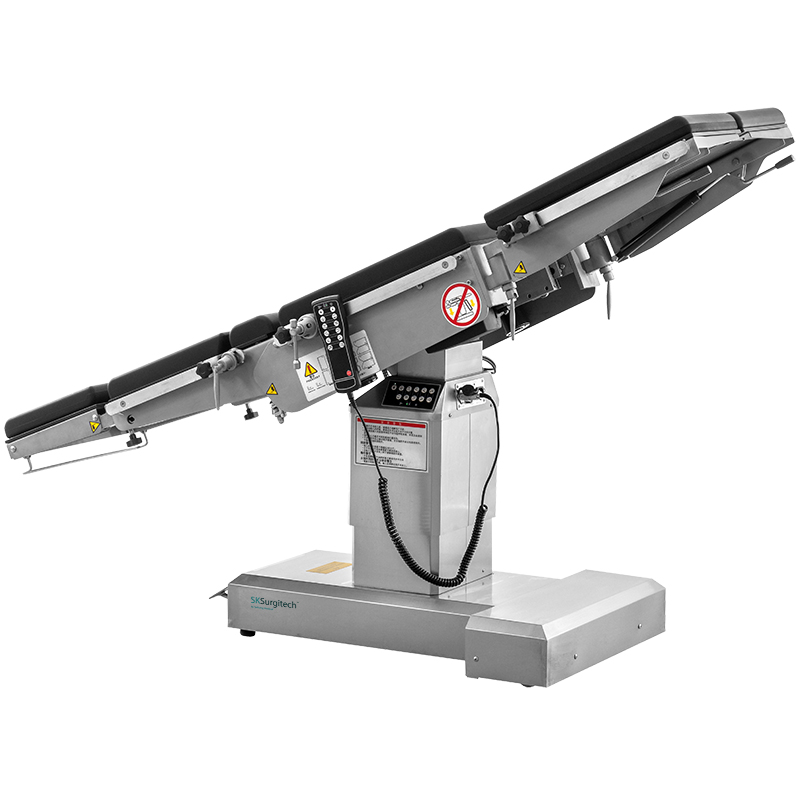

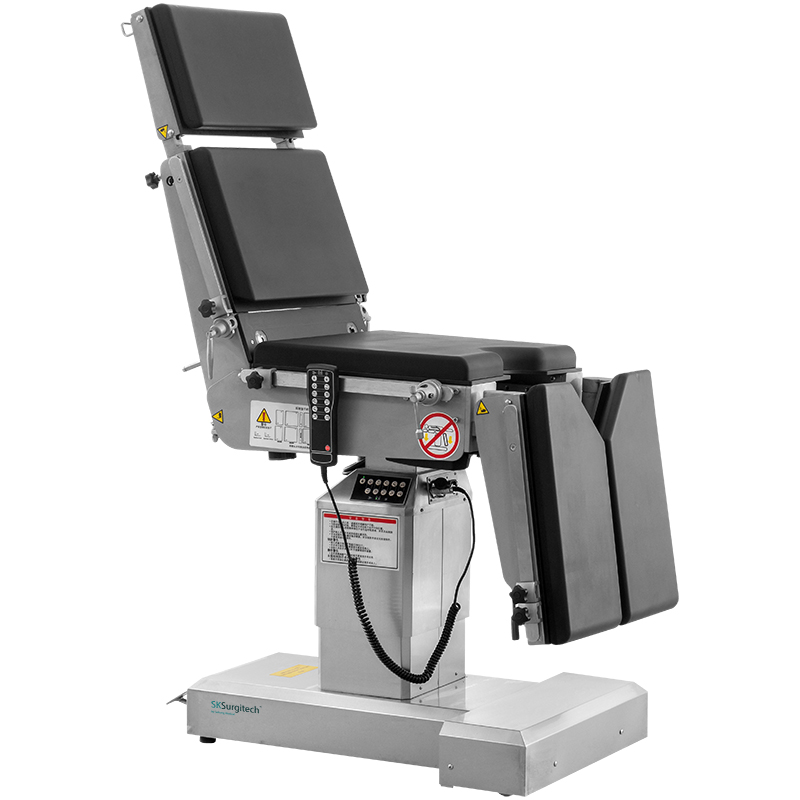

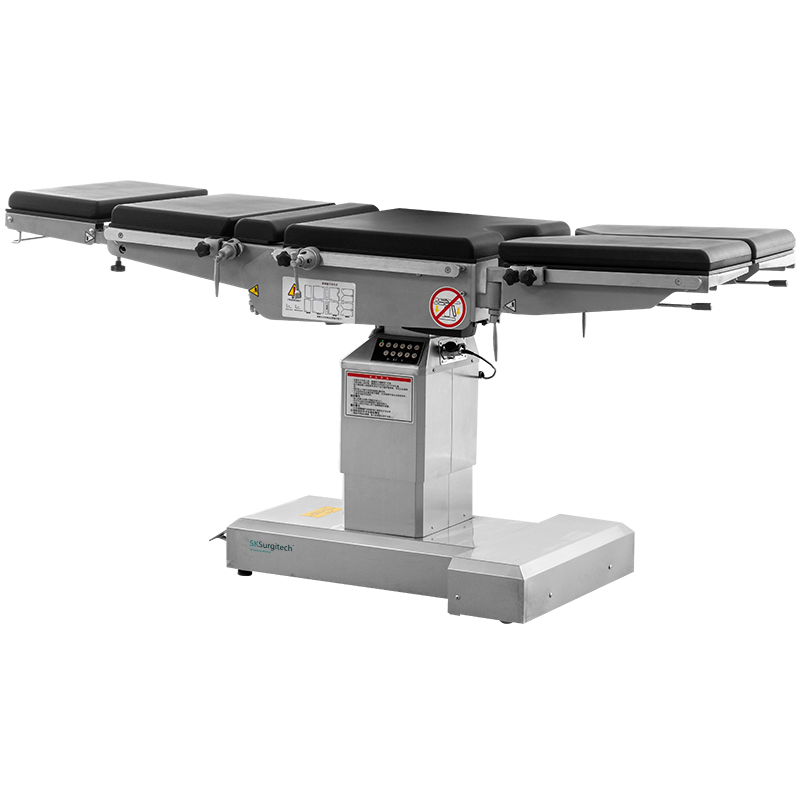

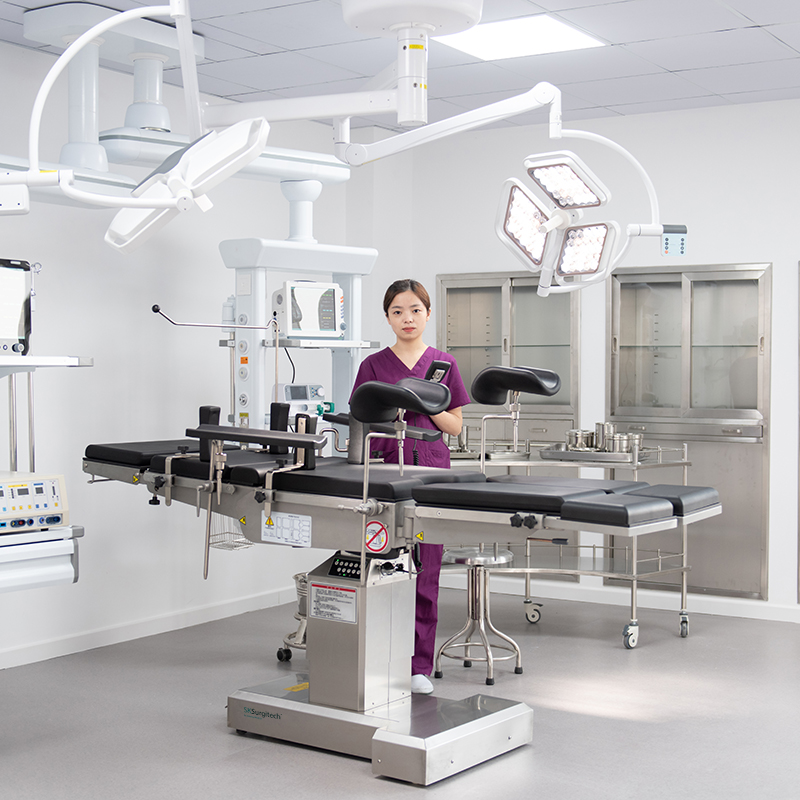

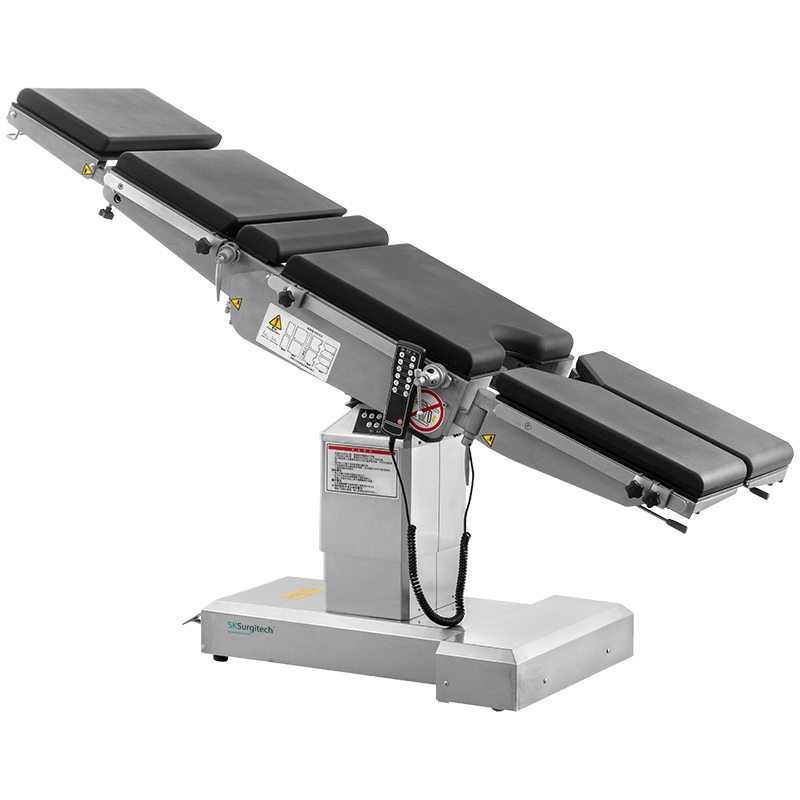

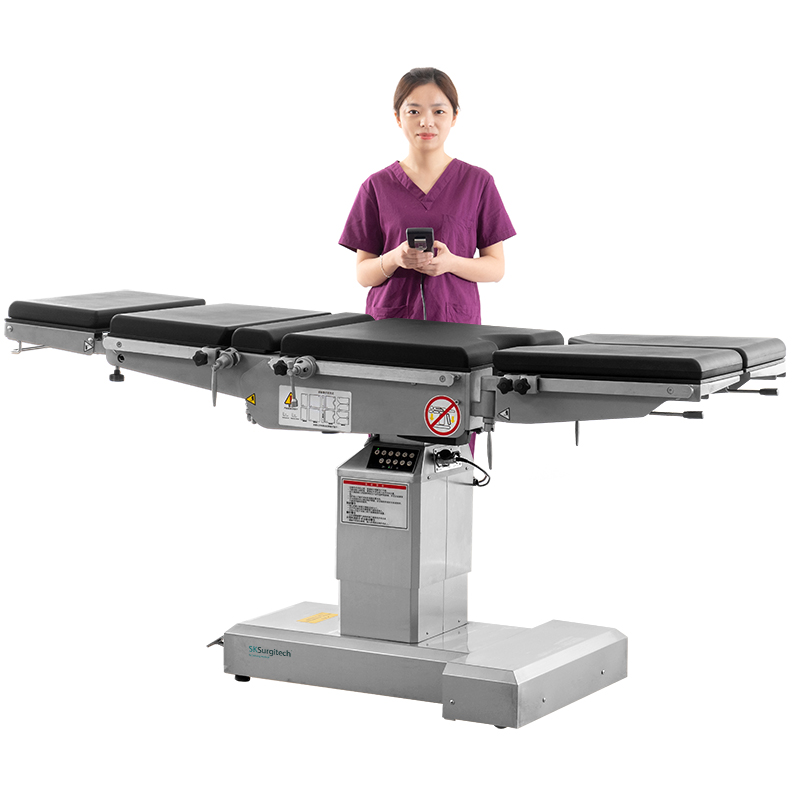

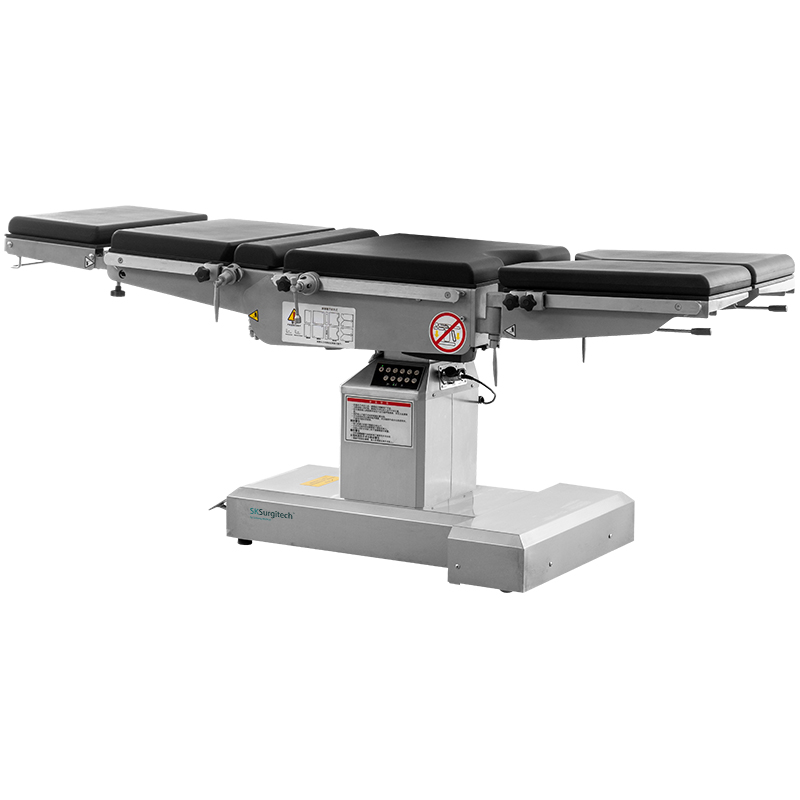

A301 Electric Operating Table


  • Product Type: A301
  • Introduction:

    Design Philosophy of A301

    A301 Surgical Table expands the high-quality, durable product

    portfolio with even more proven reliability features. Saikang Medical incorporates

    new concepts born out of comprehensive research; collaboration with

    our clinical partners — and extensive field testing.

    Electromechanical operation is simple and reliable

    Virtually indestructible one piece, solid stainless steel base

    High-quality components throughout

    Impenetrable, robotic laser welded

    Highlights

    Features

    Quality Control

    Warranty

    Download

    Product data sheet

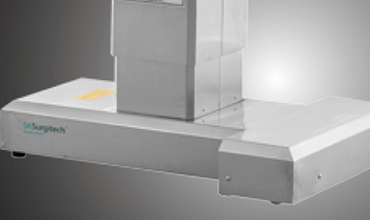

    Material
    The base material for the table is high thickness 304 stiainless steel, seamlessed welding by robot, with modern appearance and more stable.

    Mattress
    Polyurethane foam mattress, waterproof and seamless, avoid liquid in. The connection between table and mattress is buckle joint, easy to disassemble and install, easy to clean.



    Product data sheet
    Product data sheet

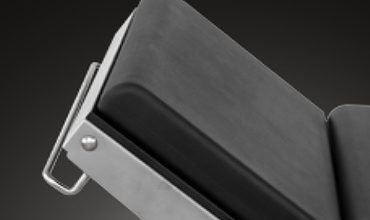

    Head plate
    Head plate is with imported gas spring for easy control.

    Kidney bridge
    Manual kidney bridge, operate by head side rocker, more convenience.

    Product data sheet
    Product data sheet

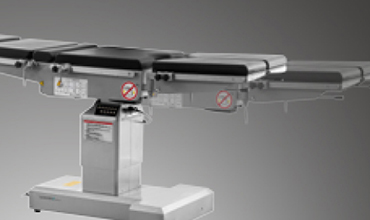

    Horizontal sliding
    Extra horizontal sliding, distance 350mm high strengthen phenolic resin table surface, C-arm and X-ray compatible.

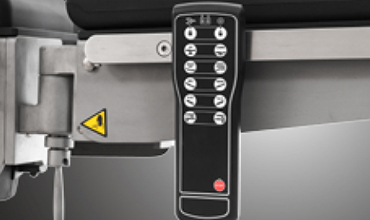

    Dual control system
    All functions controlled by both hand controller or control panel on table base column. With action LCD display on hand controller, easy to operate.With control panel on table base column, in case of emergency hand controller failure.

    Product data sheet
    Product data sheet

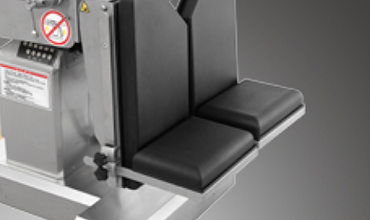

    Leg plate
    Leg plate with imported gas spring for easy control. Disassembled type leg plate.

    Brake
    Pedal brake, easy to move and lock.Pedal down to release the inner castors down. Pedal up to retract the castors, which enables the table locked on the floor.

    Product data sheet
    Product data sheet

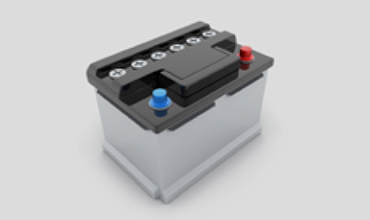

    Battery could support
    Battery could support about 80-120 complete operation cycles. Working time could be last for one week according to useage and help to keep the operating table runing in the event of power failure.

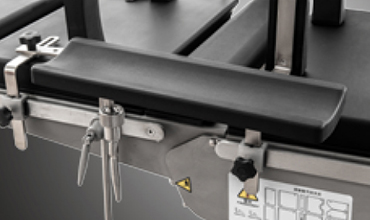

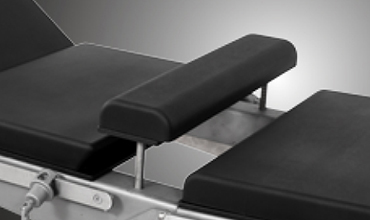

    Armrest

    Product data sheet
    Product data sheet

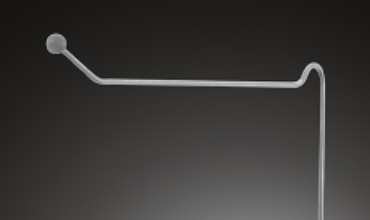

    Anesthesia Frame

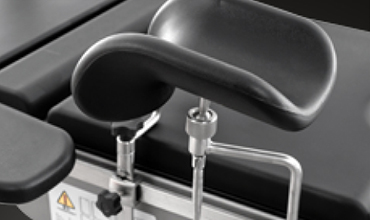

    Leg Crutches

    Product data sheet
    Product data sheet

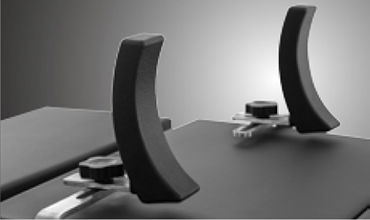

    Shoulder Support

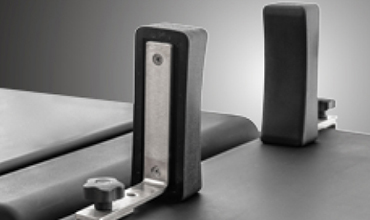

    Body Supporter

    Product data sheet

  • Previous:
  • Next:

  • Technical parameters

    External size (LxWxH) 2150x555x(750-1000)mm
    Reverse trendelenburg 0-25°
    Trendelenburg 0-25°
    Lateral tilt left/right 0-15°
    Head plate up/down 30°/90°
    Back plate up/down 70°/15°
    Leg plate down 90°
    Leg plate outwards 90°
    Kidney bridge elevation 0-110mm
    Horizontal sliding 0-350mm
    Safe working load 275kg



    X-rays translucent YES
    C-arm compatible YES
    Multi-functional Orthopedic Frame YES

     Technical configuration

    Bed frame 1pc
    Mattress 1set
    Anesthesia screen frame 1pc
    Shoulder holder 2pcs
    Arm holder 2pcs
    Leg support 2pcs
    Foot support 2pcs
    Hand controller 1pc
    Sliding block 8pcs
    Spanner 5pcs

    FireShot-Capture-001---Hospital-bed_Jiangsu-Saikang-Medical-Equipment-Co.,Ltd.---saikangmedical_05

    We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.

    FireShot-Capture-001---Hospital-bed_Jiangsu-Saikang-Medical-Equipment-Co.,Ltd.---saikangmedical_08

    feature-thumb-3



    WARRANTY

    * We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.

    * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.

    * Beyond the maintenance period, we will charge the accessories, but the technical service is still free.



    feature-thumb-2


    FAQ

    What quality requirements does your company meet?

    * We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.

    * We also meet the 93/42/EEC and IEC60601 safety standards.

    * In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.

    What warranty do your products have?

    * We provide a standard 1 year warranty, optional to be increased.

    * 1% free parts of the total quantity will be provided together with goods.

    * The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.

    * Beyond the maintenance period, we will charge the accessories, but the technical service is still free.

    What is your delivery time?

    * Our standard delivery time is 28 days.

    What payment options do you offer?

    * We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.

    Do you offer OEM service?

    * Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.

    Do you have different motor options?

    * Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.

    Is the color on headboard/footboard and ABS side rail optional?

    * Yes, we can provide the color according to customers’ requirements, based on wholesale purchases.

    Can I see your products personally?

    * You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).

    * In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
