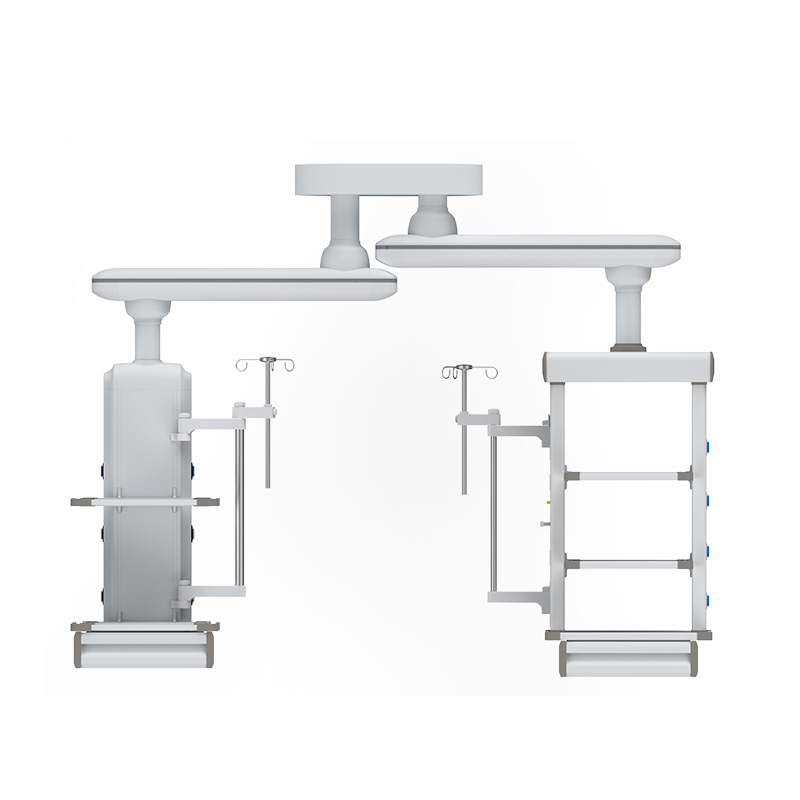

SK-PQ004 Medical Bridge Ceiling Pendant


  • Product Type: SK-PQ004
  • Introduction:

    The ICU medical bridge ceiling pendant(separate wet and dry areas) is a medical rescue auxiliary equipment;

    Features:

    1.There are multi-layer instrument platforms in wet(gas) and dry (electric) areas;

    2.The height of drawers can be adjusted;

    3.With retractable IV pole, with four hooks;

    4.The function columns and cabinets bulit in rotation limit device to prevent the drift;

    Highlights

    Features

    Quality Control

    Warranty

    Download

    SK-PQ004 (1)

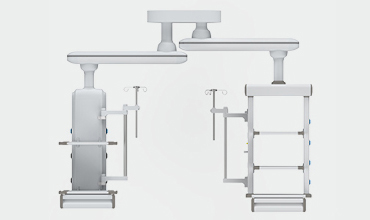

    Appearance design
    The design of bridge hanging style saves ground space; the whole bridge pendant is fully sealed, no sharp angle to prevent the impact.

    Painting
    Imported plastic powder, electrostatic painting process, painting thickness 0.12mm, brightness 60°, paint can resist 50kg impact.

    SK-PQ004 (2)
    SK-PQ004 (3)

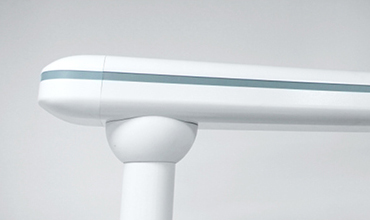

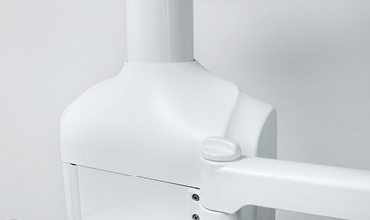

    Welding
    Panasonic Robot ensure 360° full smooth welding.

    Material
    The tensile strength of aluminum alloy frame is more than 295MPa, some connecting parts are made of cast iron ≥200MPa, and the net load is more than 300kg; one-off extrusion molding, and the surface undergoes the primary oxidation treatment.

    SK-PQ004 (4)
    SK-PQ004 (5)

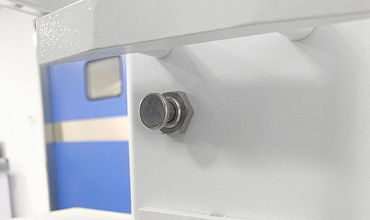

    Braking System
    The pneumatic brake system, using compressed air to brake hanging arms and medical pendants, one press to release the brake.

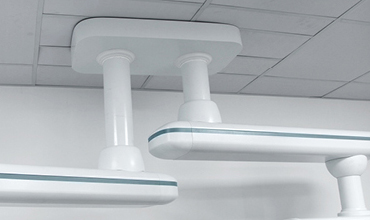

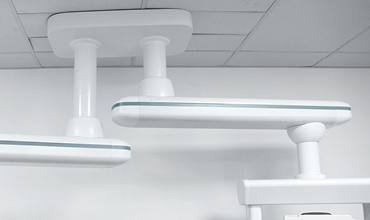

    Suspension System
    The rotation angle of medical pendant and hanging arm is 340°,built-in rotation limit device to prevent drift.

    SK-PQ004 (6)
    SK-PQ004 (7)

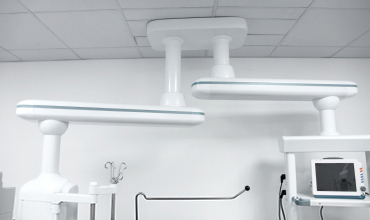

    Rotating Arm
    The single rotating arm can cover 1000mm treatiment radius, using dislocation height installation, can be used flexibly during treatment.

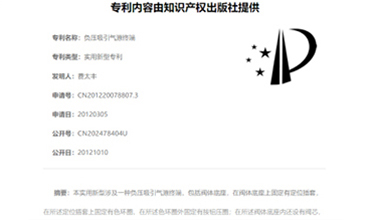

    Utility Model Patent
    Negative pressure terminal obtained the Utility Model Patent CN202478404U.

    SK-PQ004 (8)
    SK-PQ004 (9)

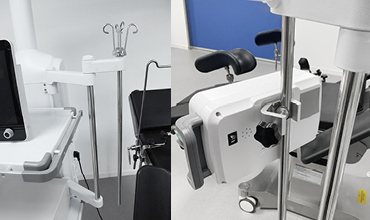

    IV pole with four hooks
    The length of IV pole is 600mm, can be retractable,  with four hooks, single hook can bear 4 kg.

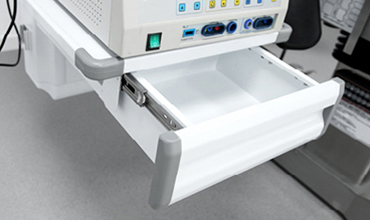

    Drawer
    Silent self-priming track, no damage after 10,000 times push-pull tests, and the handle position is integrally formed by pressing with mould.

    SK-PQ004 (10)
    SK-PQ004 (11)

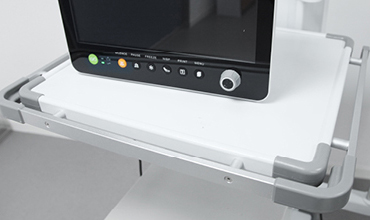

    Instrument platform
    The size of  the table top is 450*500mm, and the height of table surface can be adjusted. The table top is made of aluminum alloy panel with iron square tube inside, can bear≥50KG;with external aluminum alloy hanging frame.

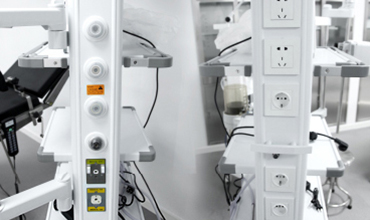

    Medical gas
    It is equipped with medical gas on both sides of the cabinet and column. The following configurations can be customized,
    1. The number of medical gas
    2. Interface standard and position
    Gas port adopts secondary seal, three states (on, off, pull), support maintenance operations while it is working.

    SK-PQ004 (12)
    SK-PQ004 (13)

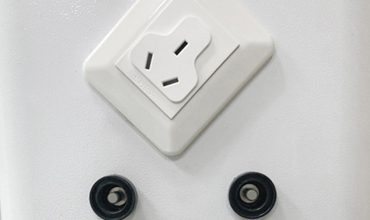

    Equipotential Socket
    Reduce the potential difference between indirect contact voltage and different metal parts.


  • Previous:
  • Next:

  • Product introduction:

    The ICU medical bridge ceiling pendant(separate wet and dry areas) is a medical rescue auxiliary equipment;
    Features:
    1.There are multi-layer instrument platforms in wet(gas) and dry (electric) areas;
    2.The height of drawers can be adjusted;
    3.With retractable IV pole, with four hooks;
    4.The function columns and cabinets bulit in rotation limit device to prevent the drift;

    Product Application:

    Suitable for ICU,NICU,PICU,EICU room

    Optional accessories:

    1. Net basket – Stainless steel net basket
    2. We manufacture and provide different standard of medical gas outlet: British Standard, American standard, German standard, French standard, Japanese Standard, etc.
    3. Different standard of medical gas outlets & adapters: British standard, French standard, German standard, Diss, Ohmeda, Chemetron, and etc.
    4. Inhalers – All kinds of oxygen inhalers (disposable, simple, external hanging, etc.)
    5. Negative pressure regulating valve
    6. Waste liquid collection device (external hanging type)
