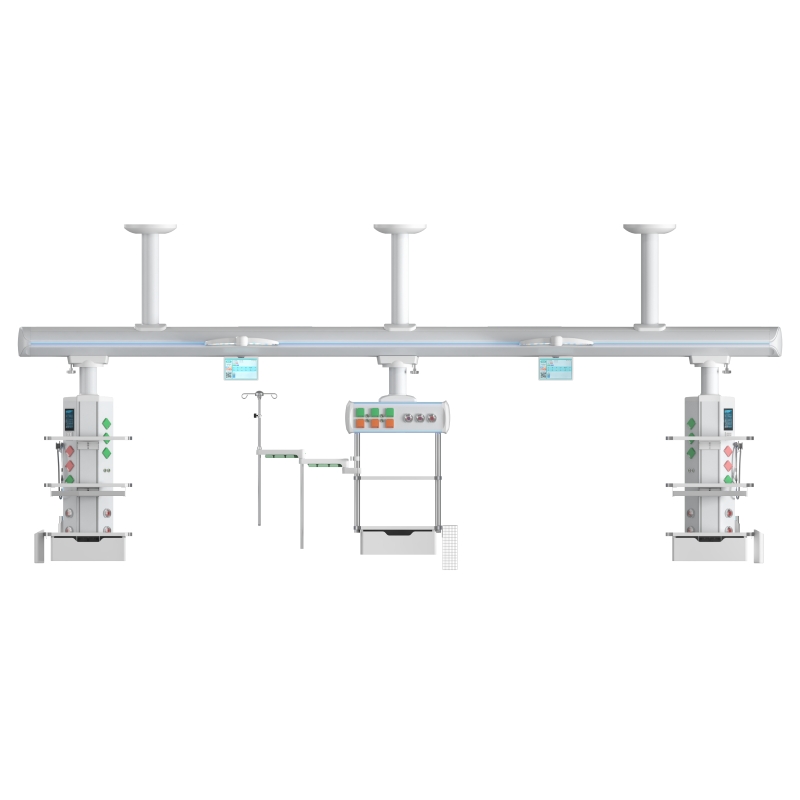

AInno X81 ICU Medical Bridge Ceiling Pendant
Introduction:
Technical parameters
| Operating power supply | AC220V, 50Hz |
| Input power | 6KVA |
| Bridge body length | 5000mm |
| Horizontal bos size | Length1000mm |
| Vertical box length | 1000mm |
| Left and right horizontal stroke | 500mm |
| Rotation angle | 340° |
| Hanging bridge load-bearing capacity | 450kg |
| Instrument platform load-bearing capacity | 80kg |
| Protection class | IP20 |
| Fire protection class | UL94-V1 |
Technical configuration
| Horizontal box | 1 pc |
| Vertical box | 2 pcs |
| Bridge (3m+2m) | 2 sections |
| Mechanical braking system | 1 set |
| Medical gas (Horizontal box) | O2*2、AIR*1、VAC*2 |
| Medical gas (Vertical box) | (O2*2、AIR*1、VAC*2)*2 |
| Instrument platform (Horizontal box) | 2 layers |
| Instrument platform (Vertical box) | (3 layers)*2 |
| Power outlets (Horizontal box) (220V/10A) | 6 pcs |
| Power outlets (Vertical box) (220V/10A) | (6 pcs) *2 |
| Network interface RJ45 (Vertical box） | (1 pc) *2 |
| Equipotential terminals (Horizontal box) | 4 pcs |
| Equipotential terminals (Vertical box） | 2 pcs |
| Drawers: Horizontal（Horizontal box) | 1 pc |
| Drawers: Horizontal（Vertical box） | (2 pcs) *2 |
| Extension arm (Horizontal box) | 1 set |
| Infusion stand (Horizontal box) | 1 set |
| Infusion pump stand (Horizontal box) | 1 set |
| Boom hub (Horizontal box) | 1 pc |
