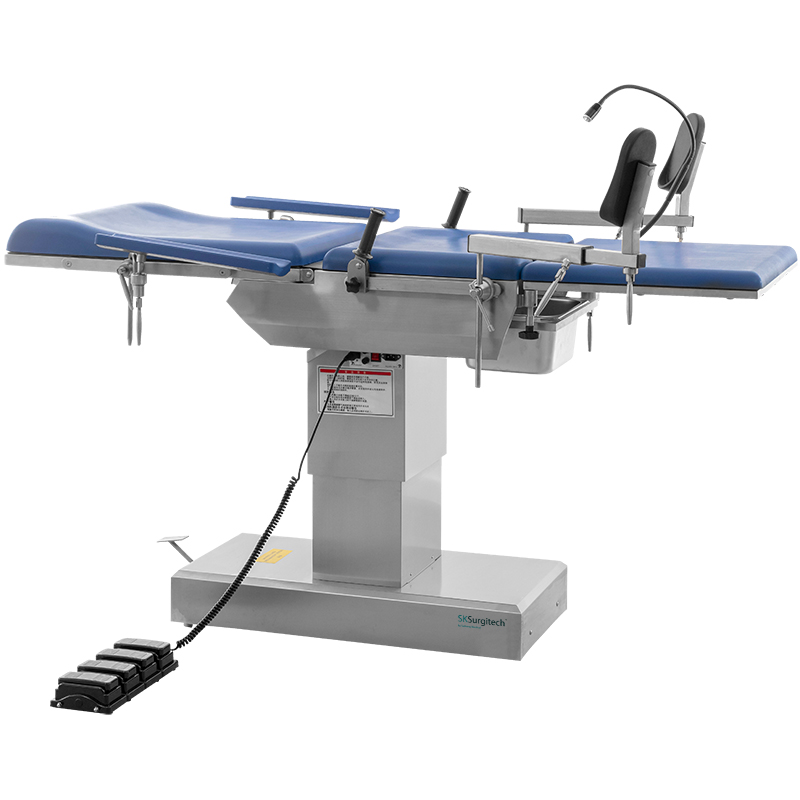

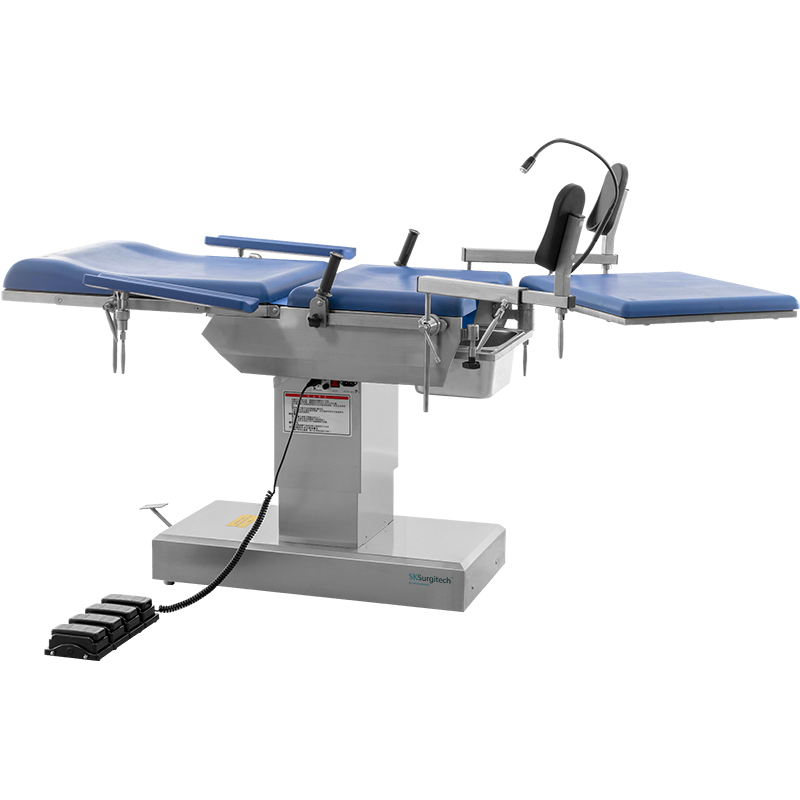

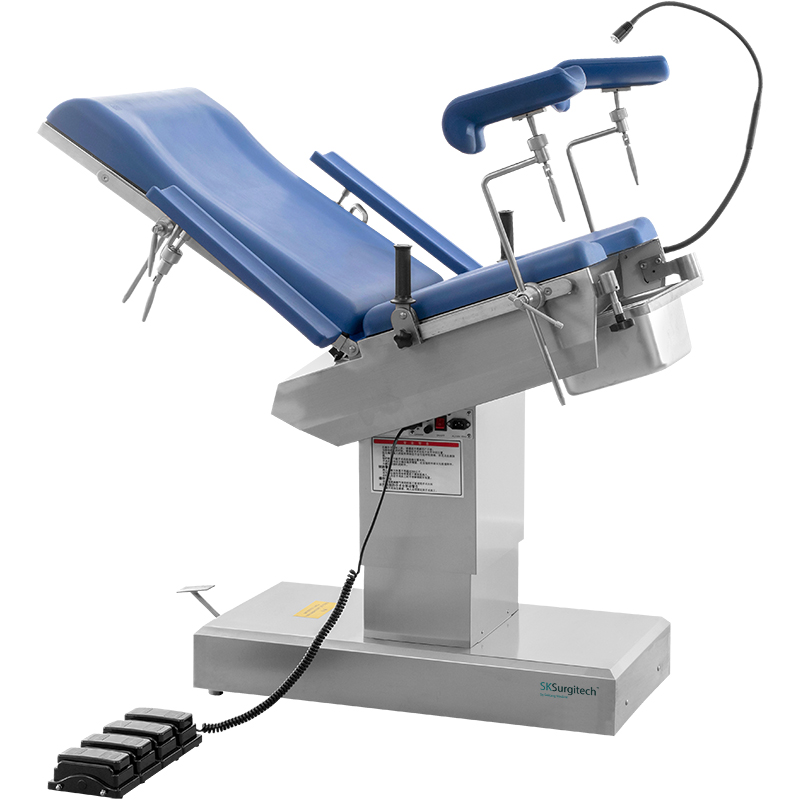

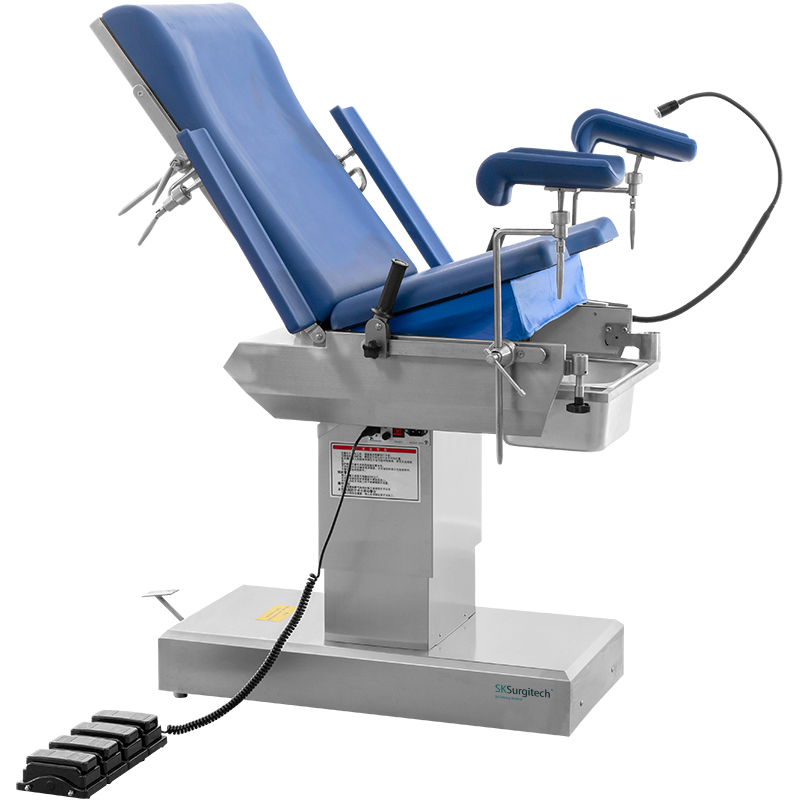

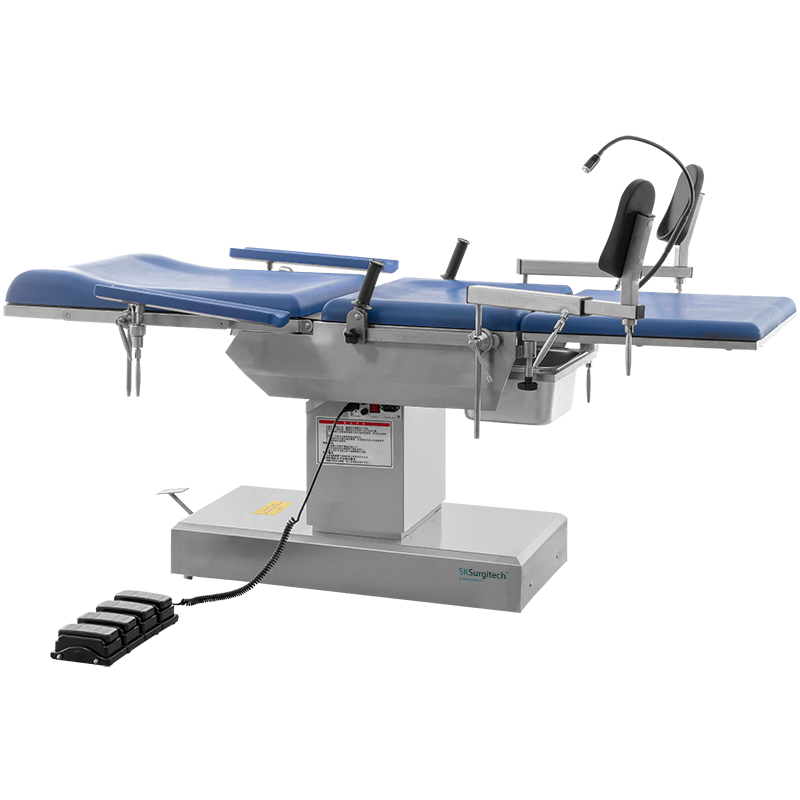

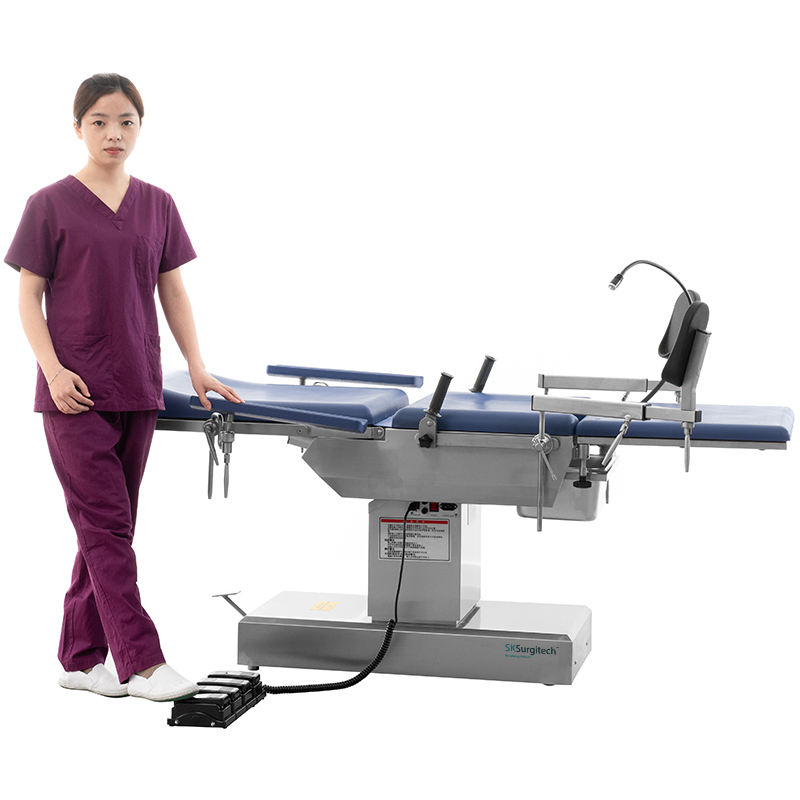

A99-13 Electric Obstetric Bed
Introduction:
Designed for the obstetrics, birthing, gynecological operation and examination.
All movements are electrical controlled: Back plate, seat plate, table elevation, trendelenburg and reverse-trendelenburg.
Unique model combined seat plate & trendelenburg electrical controlled.

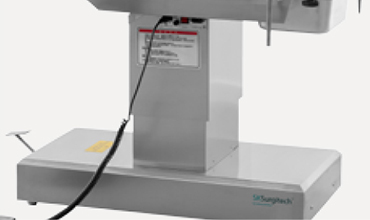

Material
Base structure is made of high-quality 304 stainless steel, robot welded with high strength and modern appearance.

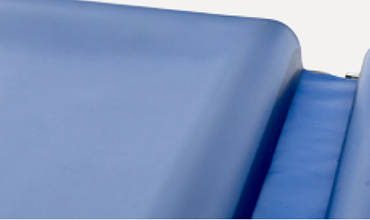

Mattress
Polyurethane foam mattress, waterproof and seamless, easy cleaning and disinfection.

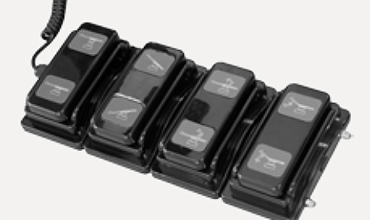

Foot pedal controller
All movements are controlled by foot pedal controller.

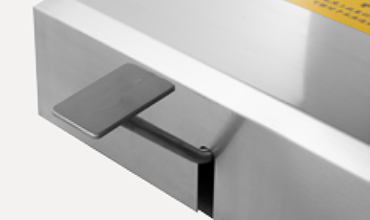

Brake
Pedal brake, easy to move and lock.Pedal down to release the inner castors down. Pedal up to retract the castors, which enables the table locked on the floor.

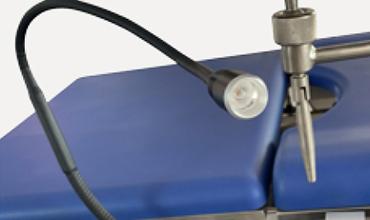

LED examination light
Standard accessory: LED examination light.More convenient to do gynecological examination.

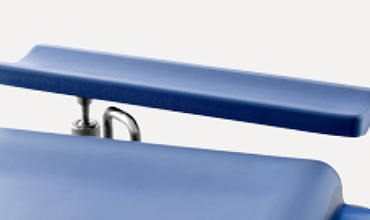

Arm plate
Flexible arm plate adjustment.

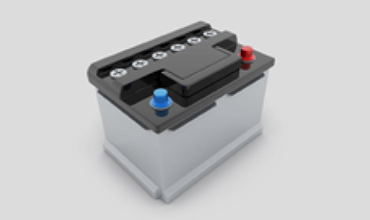

Battery could support
Battery could support about 80-120 complete operation cycles. Working time could be last for one week according to useage and help to keep the operating table runing in the event of power failure.

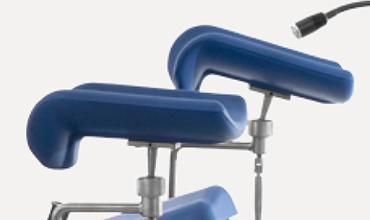

Leg supports
Equipped with two different leg supports to meet different surgical needs.

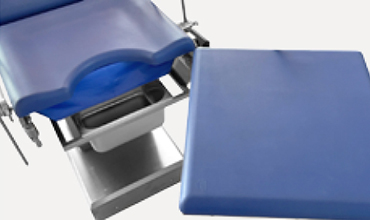

Auxiliary plate
Auxiliary plate is easy for rotating and dismantling. Rotating angle: 90°.

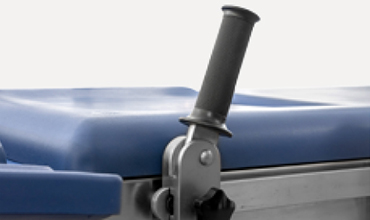

Pull handles
Pull handles can be folded to horizontal position. Easy patient mobilisation.
Auxiliary plate
Auxiliary plate is easy for rotating and dismantling. Rotating angle: 90°.

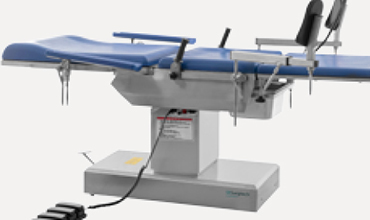

Electrical controlled
All movements are electrical controlled: Back plate, seat plate, table elevation, trendelenburg and reverse-trendelenburg.
Technical specification:
| External (LxW) | 2100x600mm |
| Table height | 750-1000mm |
| Trendelenburg | 0-22° |
| Reverse trendelenburg | 0-22° |
| Back plate up | 0-60° |
| Seat plate up | 0-16° |
| Leg board outwards | 0-90° |
| Arm board outwards | 0-180° |
| Load bearing | ≤300kg |
Standard accessories:
| Armrest | 2 pcs |
| Knee Curtch | 2 pcs |
| Pull handle | 2 pcs |
| Anesthesia frame | 1 pc |

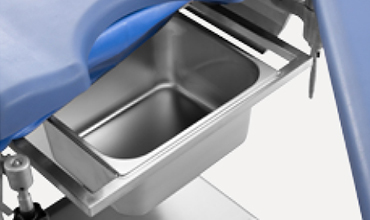

| SST rinsing basin | 1 pc |
| Pedal controller | 1 pc |
| LED examination light | 1 pc |
We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.
WARRANTY
* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
FAQ
What quality requirements does your company meet?
* We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.
* We also meet the 93/42/EEC and IEC60601 safety standards.
* In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.
What warranty do your products have?
* We provide a standard 1 year warranty, optional to be increased.
* 1% free parts of the total quantity will be provided together with goods.
* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.
* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
What is your delivery time?
* Our standard delivery time is 28 days.
What payment options do you offer?
* We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.
Do you offer OEM service?
* Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.
Do you have different motor options?
* Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.
Is the color on headboard/footboard and ABS side rail optional?
* Yes, we can provide the color according to customers’ requirements, based on wholesale purchases.
Can I see your products personally?
* You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).
* In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
